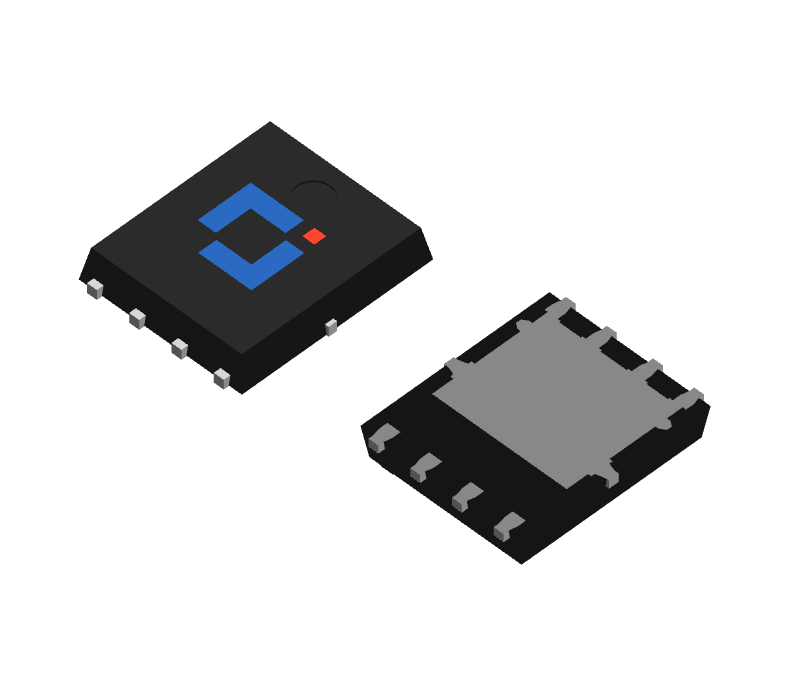

Nch 30V 120A, PDFNWB5x6-8L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJAC2R8SN03AL | Active | No | 30 | ±12 | 120 | 1.1～2.0 | 2.2 | 2.8 | 2.6 | 3.5 | PDFNWB5x6-8L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJAC2R8SN03AL | PDFNWB5x6-8L | CJAC2R8SN03AL | 5K/Reel;13 inch | 10K | 50K | MSL3 |
