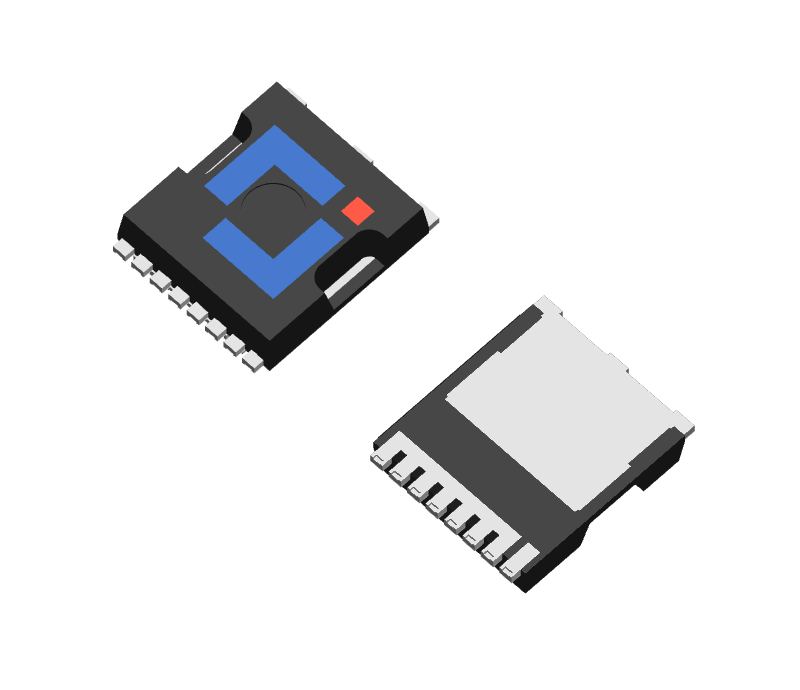

Nch 40V 420A, TOLL-8L, SGT Power MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJTLR60SN04AL | Active | No | 40 | ±20 | 420 | 1.3～2.5 | 0.44 | 0.6 | 0.6 | 0.85 | TOLL-8L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJTLR60SN04AL | TOLL-8L | TLR60SN04AL | 2K/Reel;13 inch | 4K | 20K | MSL3 |
